Black Oxide 12.9 Hex Socket 3-Piece Assembly

SKU: JT-S02-008 · Combination Screws

Reference price¥0.82/ pc · CNY (bulk negotiable)

Material: Alloy Steel
Finish: Black Oxide
Grade: 12.9
Standard: ANSI/ASME B18.13

Factory Direct
100% Inspected
24H Dispatch

TECHNICAL SPECS

Technical Specifications

Thread Size: M2.5 – M12
Thread Pitch: 0.45 – 1.75 mm
Length Range: 5 – 120 mm
Head Type: Pan Head / Large Flat / Hex
Material: 合金钢
Finish: 黑色氧化
Grade: 12.9
Tensile Strength: ≥ 1220 MPa
Hardness: HRC 39 – 44
Recommended Torque: 0.6 – 85 N·m
Standard: ANSI/ASME B18.13

APPLICATIONS

Applications

Volume Assembly Lines

Pre-assembled screw with spring and flat washers for faster assembly lines and reliable anti-loosening performance.

Home Appliances

Pre-assembled screw with spring and flat washers for faster assembly lines and reliable anti-loosening performance.

Chassis & Sheet Metal

Pre-assembled screw with spring and flat washers for faster assembly lines and reliable anti-loosening performance.

DOWNLOADS

Downloads

REQUEST A QUOTE

Product Inquiry

Tell us the quantity and requirements — formal quotation for Black Oxide 12.9 Hex Socket 3-Piece Assembly within 24 hours. Custom-made to drawing or sample.

HOTLINE+86 138 2234 8696

EMAIL823744500@qq.com

Black Oxide 12.9 Hex Socket 3-Piece Assembly

Technical Specifications

Applications

Volume Assembly Lines

Home Appliances

Chassis & Sheet Metal

Downloads

Product Inquiry

Related Products

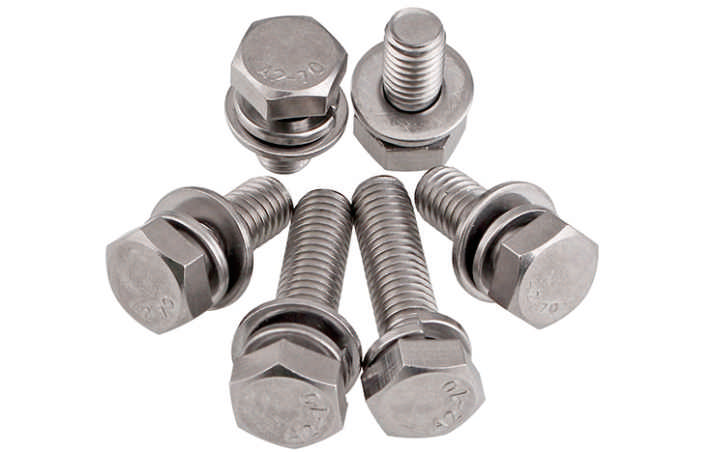

Stainless Steel Hex 3-Piece Assembly Screw

Stainless Steel Hose Clamp

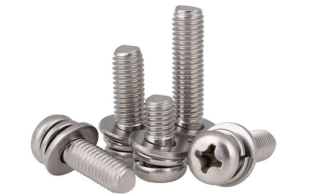

Stainless Steel Large Pan Head 3-Piece Assembly Screw

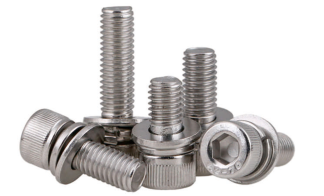

Stainless Steel Socket Head 3-Piece Assembly Screw

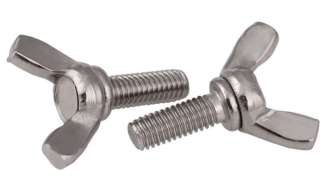

Stainless Steel Wing Screw

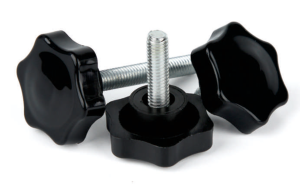

Thumb Screw

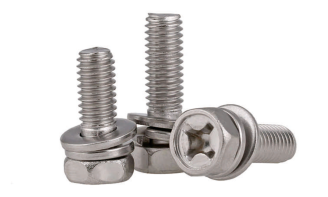

Cross Recessed Hex 3-Piece Assembly Screw

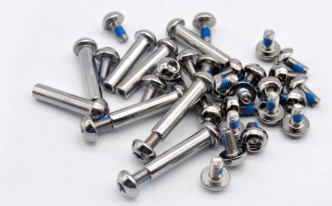

Lock Screw
